As Technical Designer for the Honey Run Bridge Sculpture Project, I had the opportunity to grow into my first large-scale installation. While I had experience with metal casting and years of laser cutting, working with large sheets of steel and plasma cutting was entirely new. Translating weightless digital geometry into a real, three-dimensional steel sculpture required over 100 hours of design and iteration, working closely with Zeke Lunder, who graciously acknowledged my contributions in public previews.
This project was more than just a technical challenge—it carried deep meaning for the community of Paradise and surrounding areas, still healing from the devastation of the 2018 Camp Fire. The sculpture became a symbol of resilience, remembrance, and renewal, and I am grateful to have been part of it.
Below, you’ll find images, renders, screenshots, and progress documentation that capture both the creative process and the finished work.

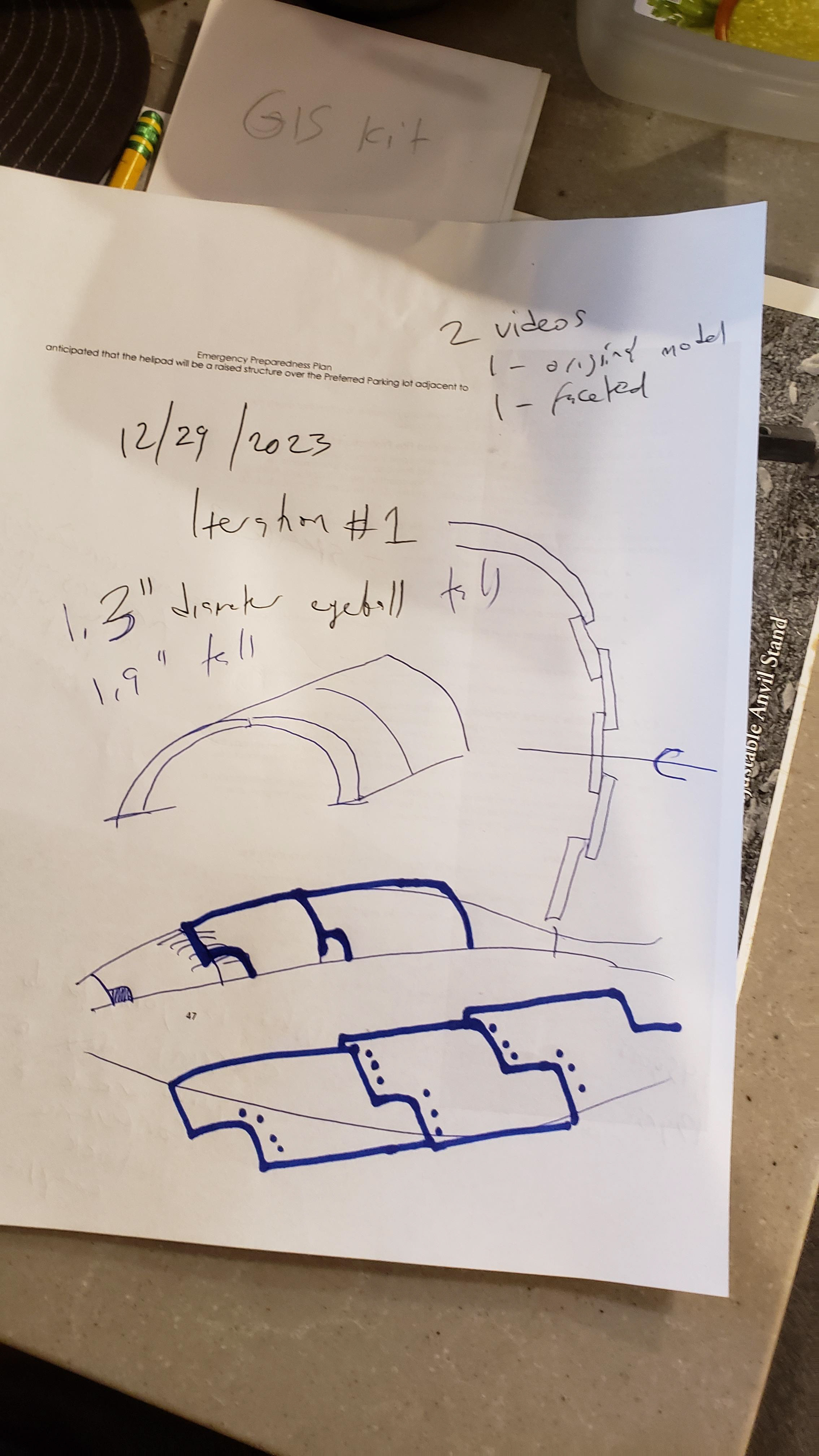

Design iterations from Zeke Lunder
Concept Render

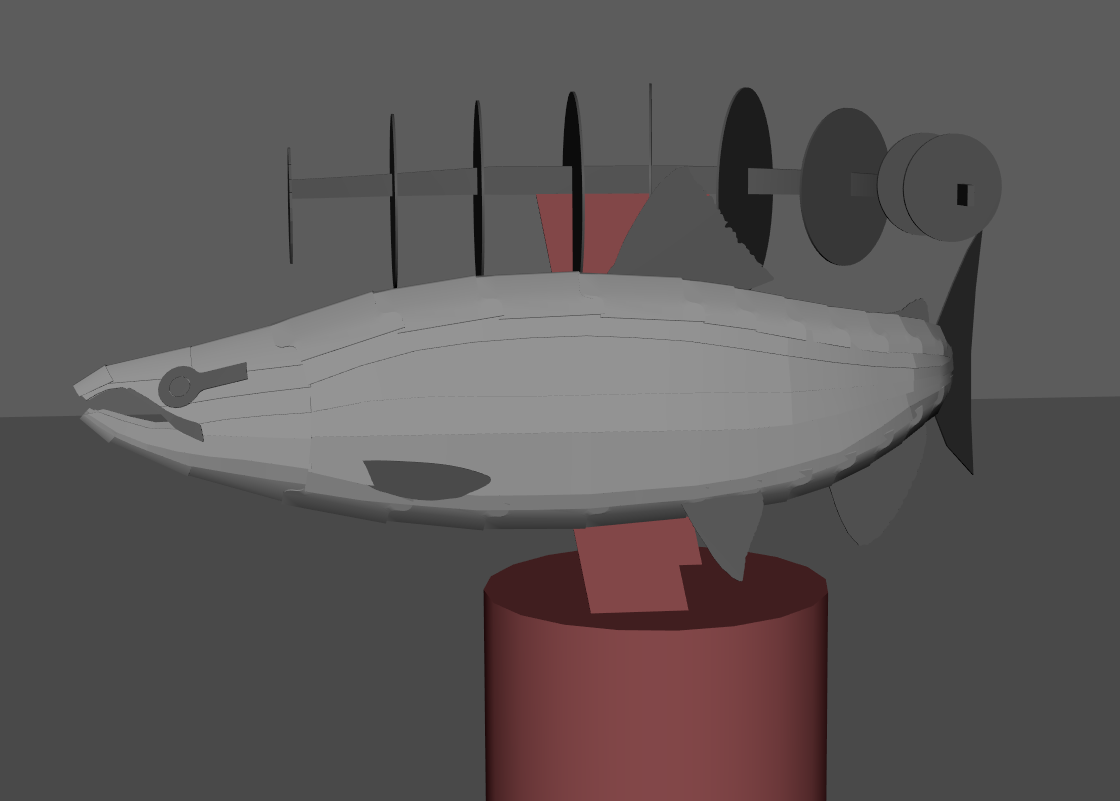

Showing inner skeleton and skin of both fish

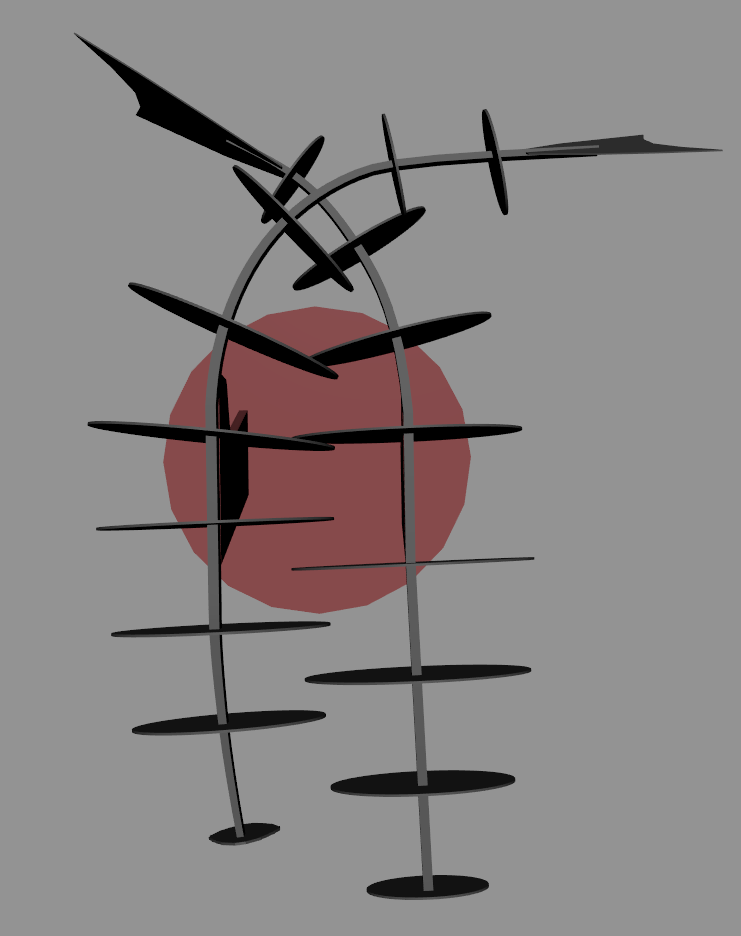

Top view of the skeleton initial design

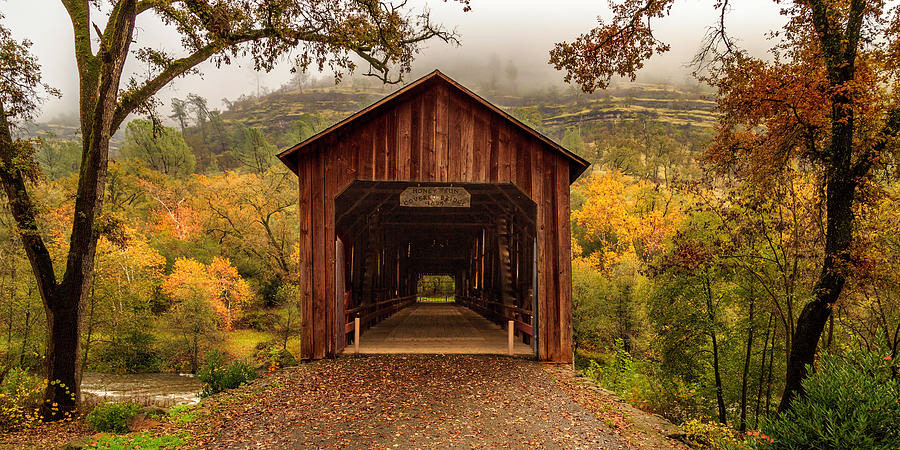

Picture of Honey Run Bridge before the Camp Fire that burned the city of Paradise and the Bridge in 2018
Placement of the Sculpture for the site installation

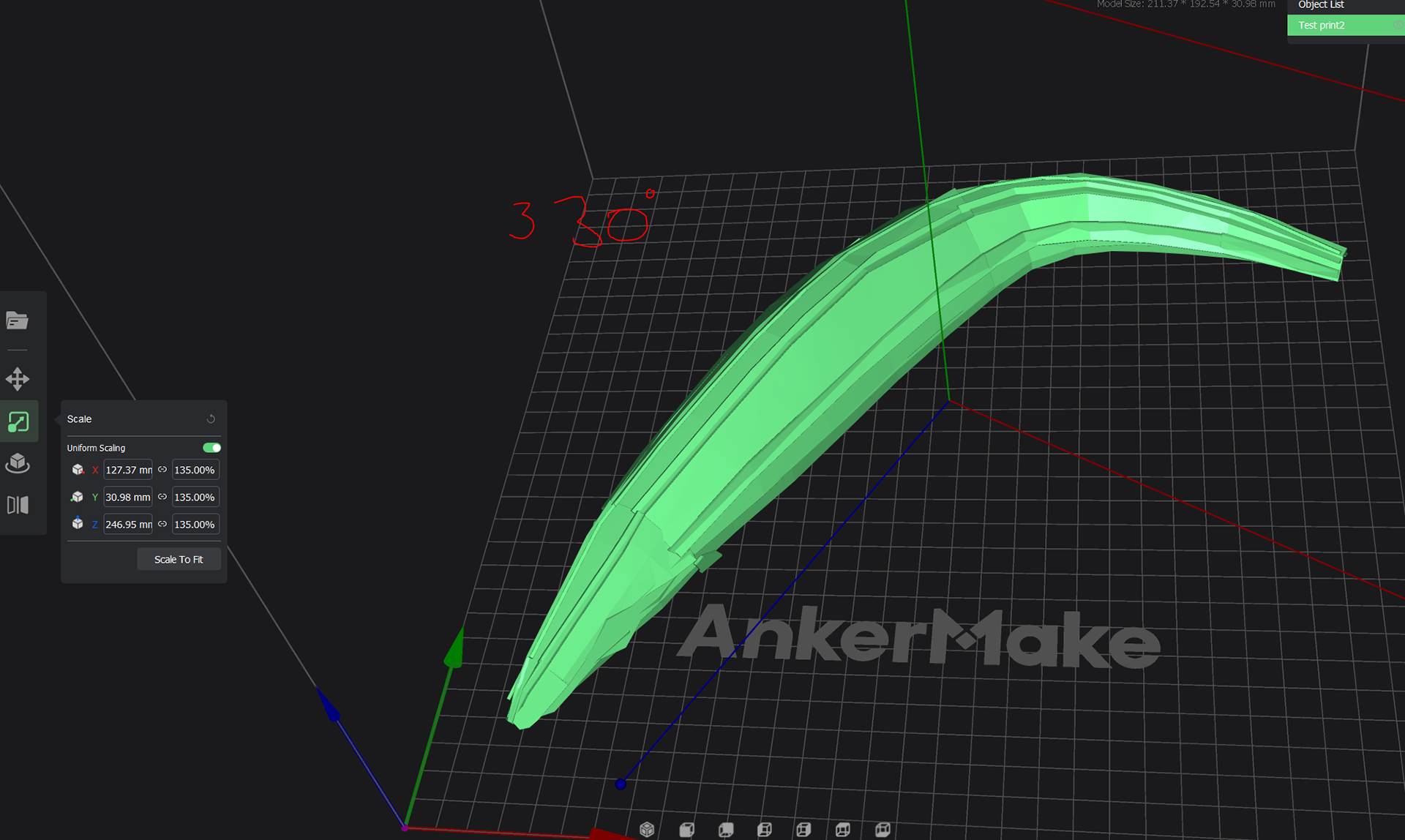

When I was 3D Printing the model

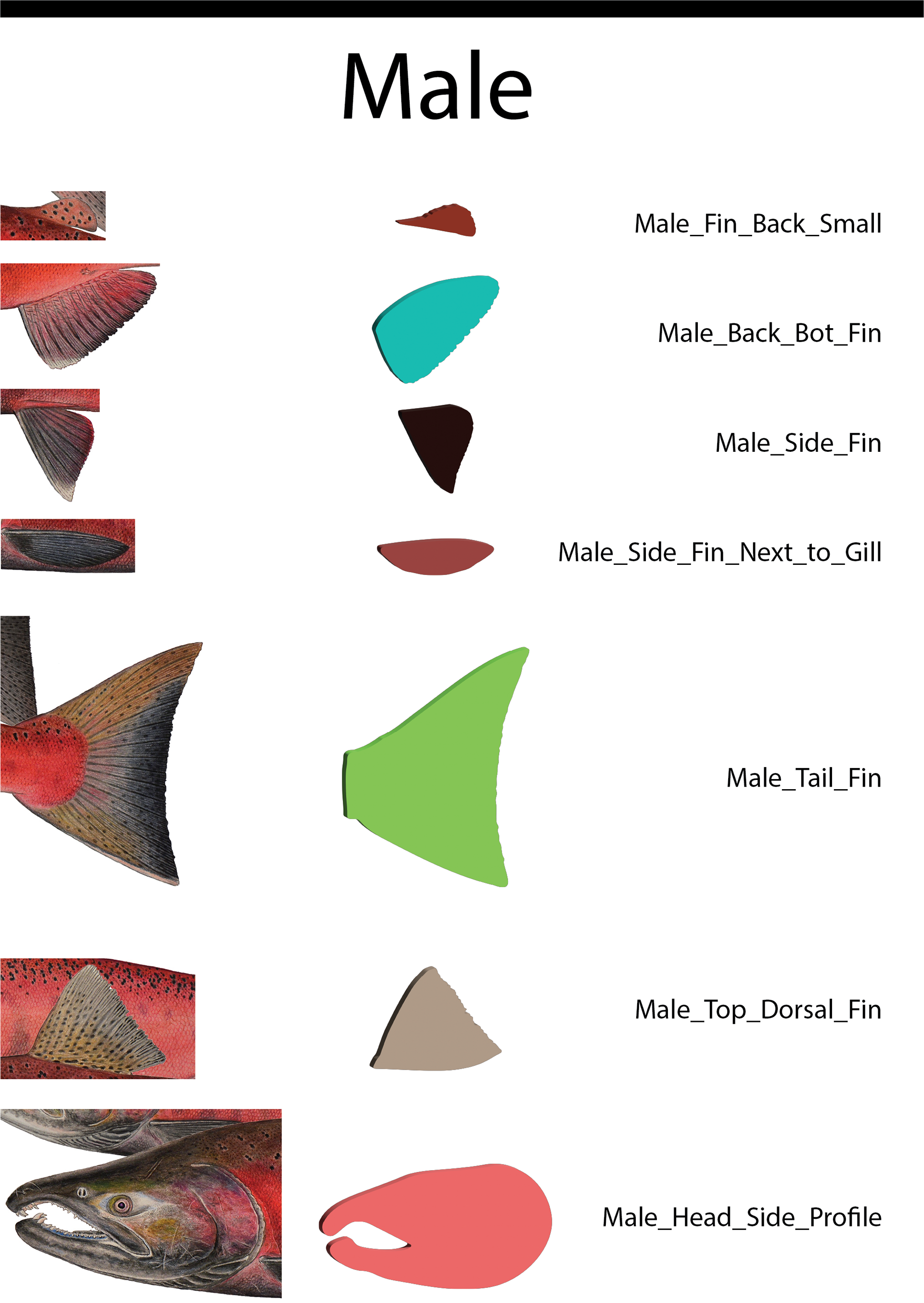

Male Pieces

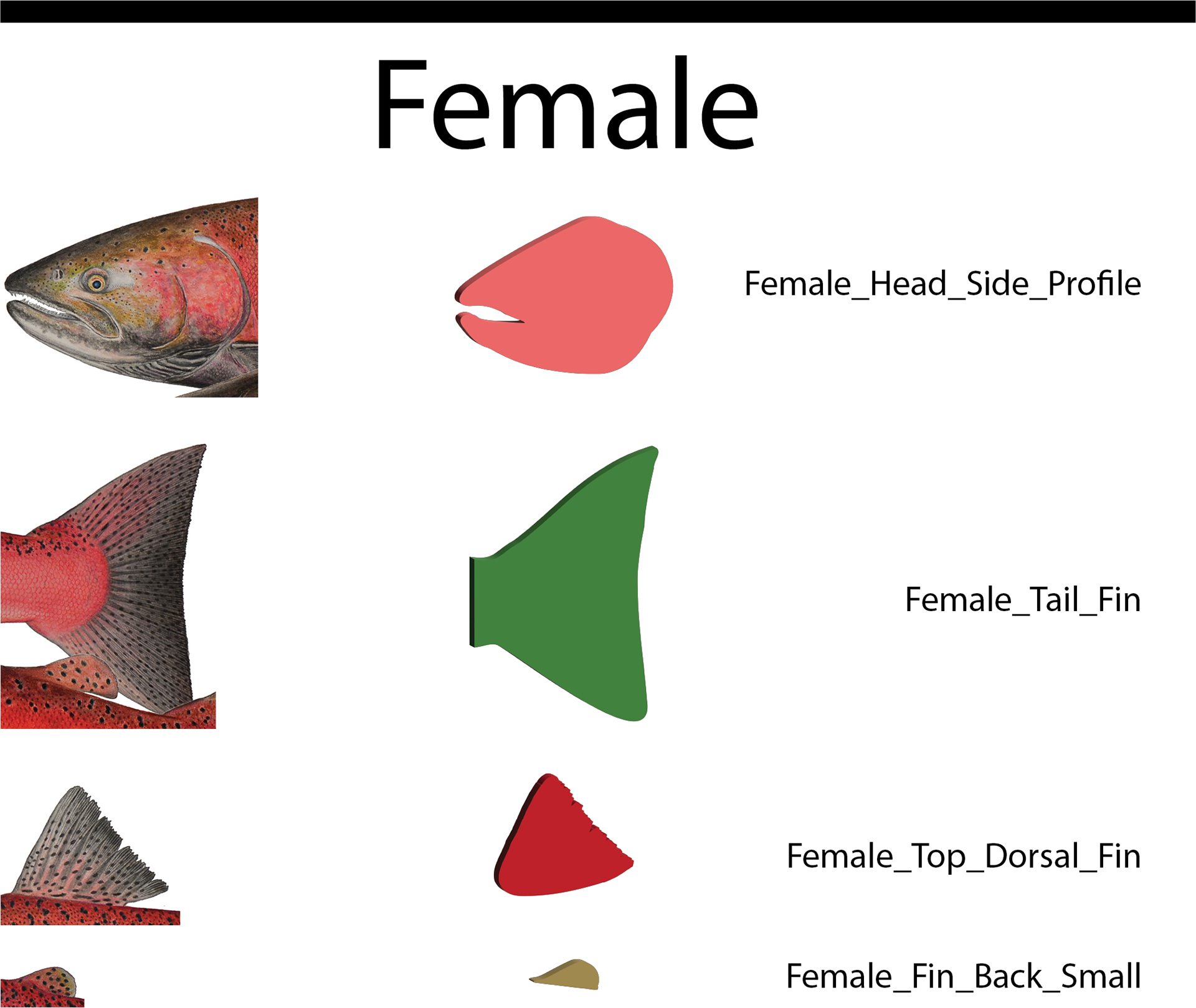

Female Pieces
Female Chinook Salmon
Male Chinook Salmon

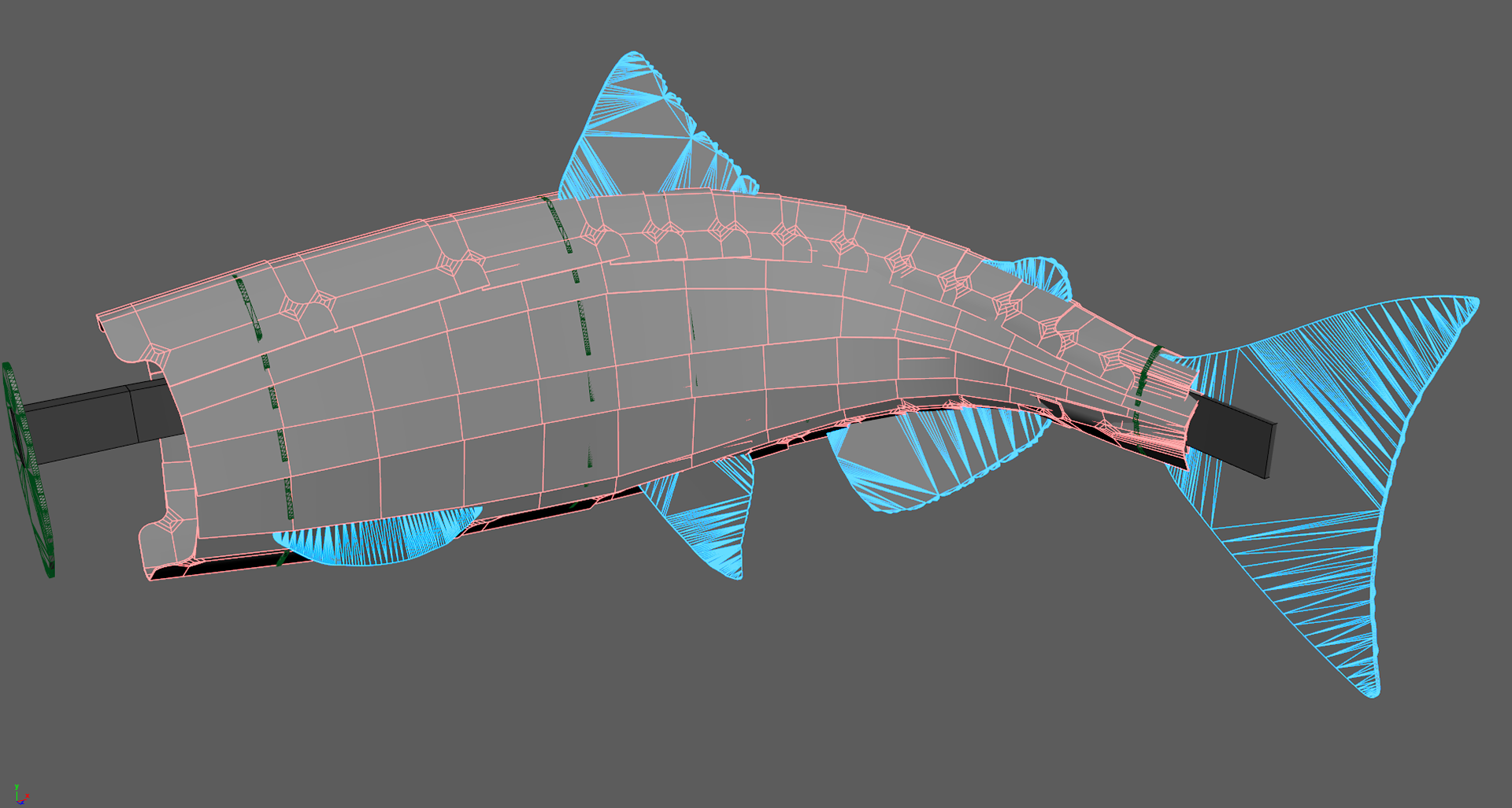

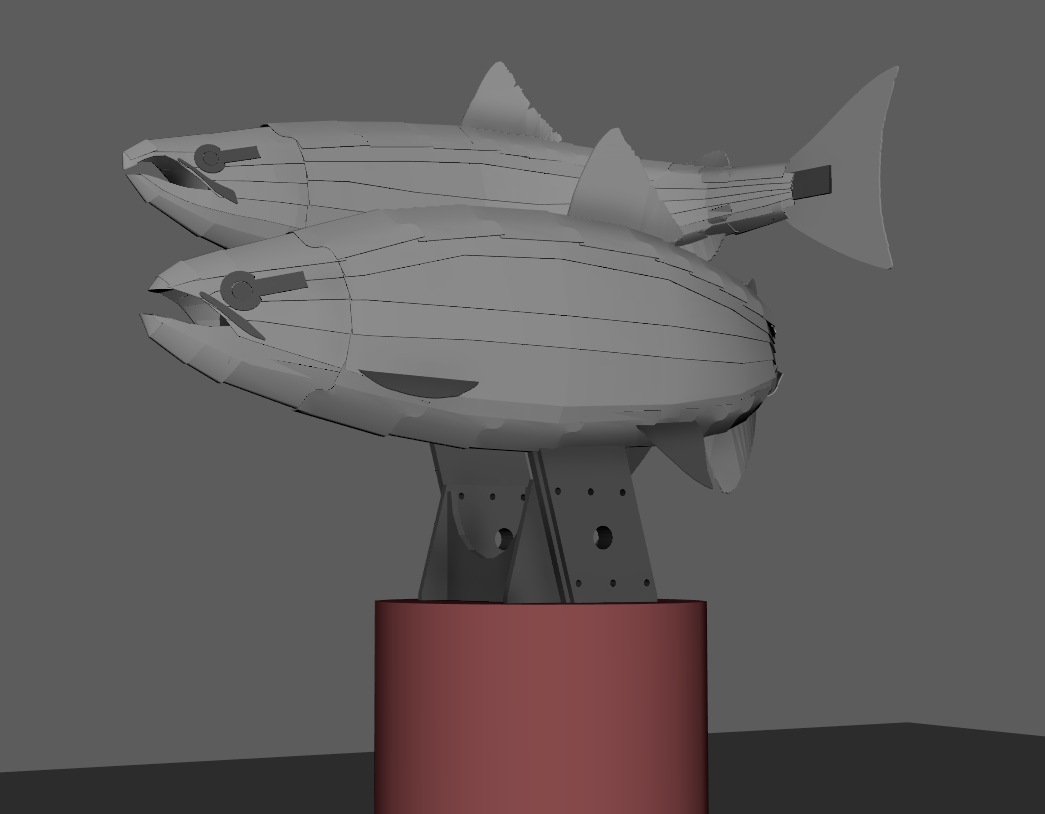

Render of Geometry with Skin

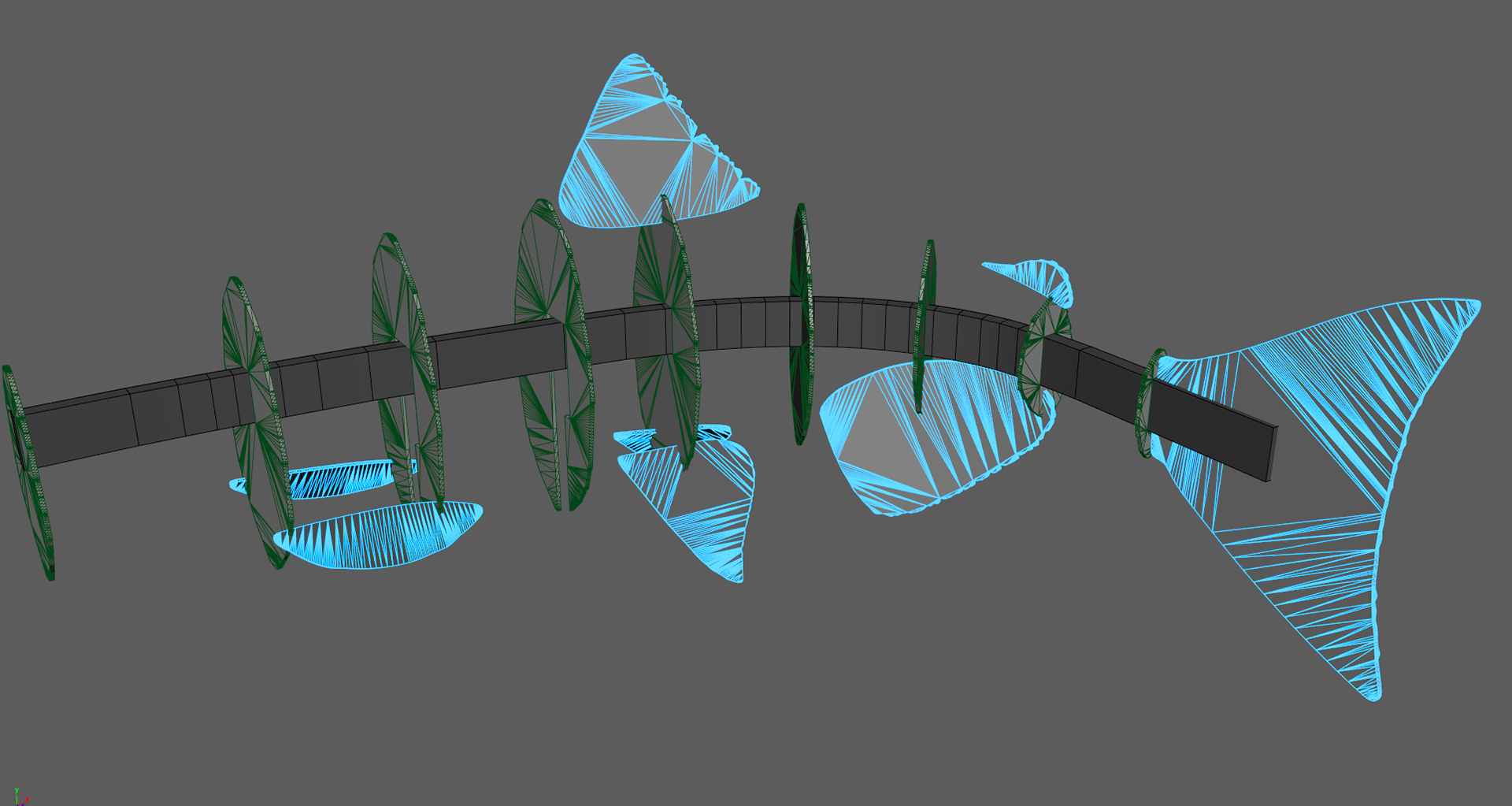

Render of Geometry without Skin

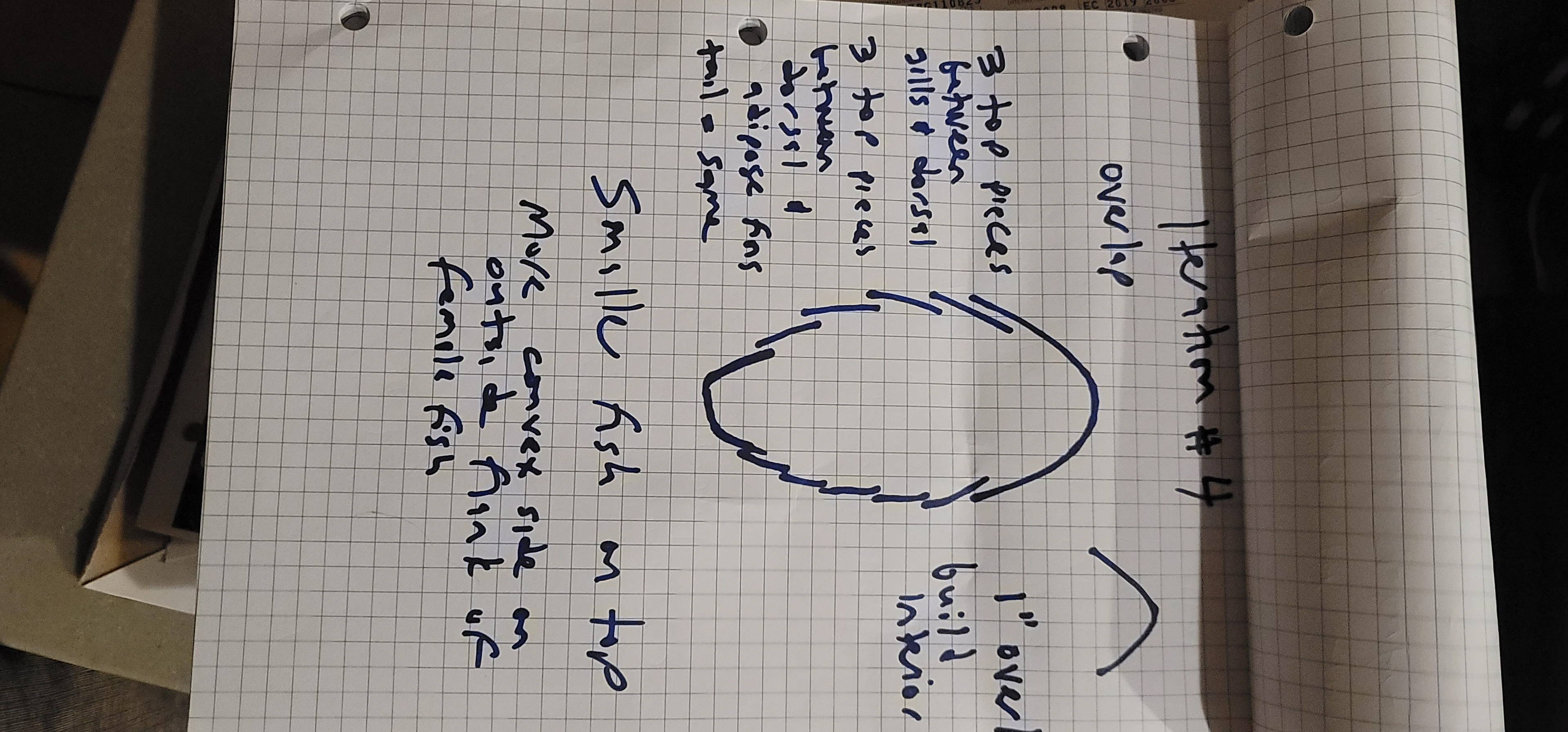

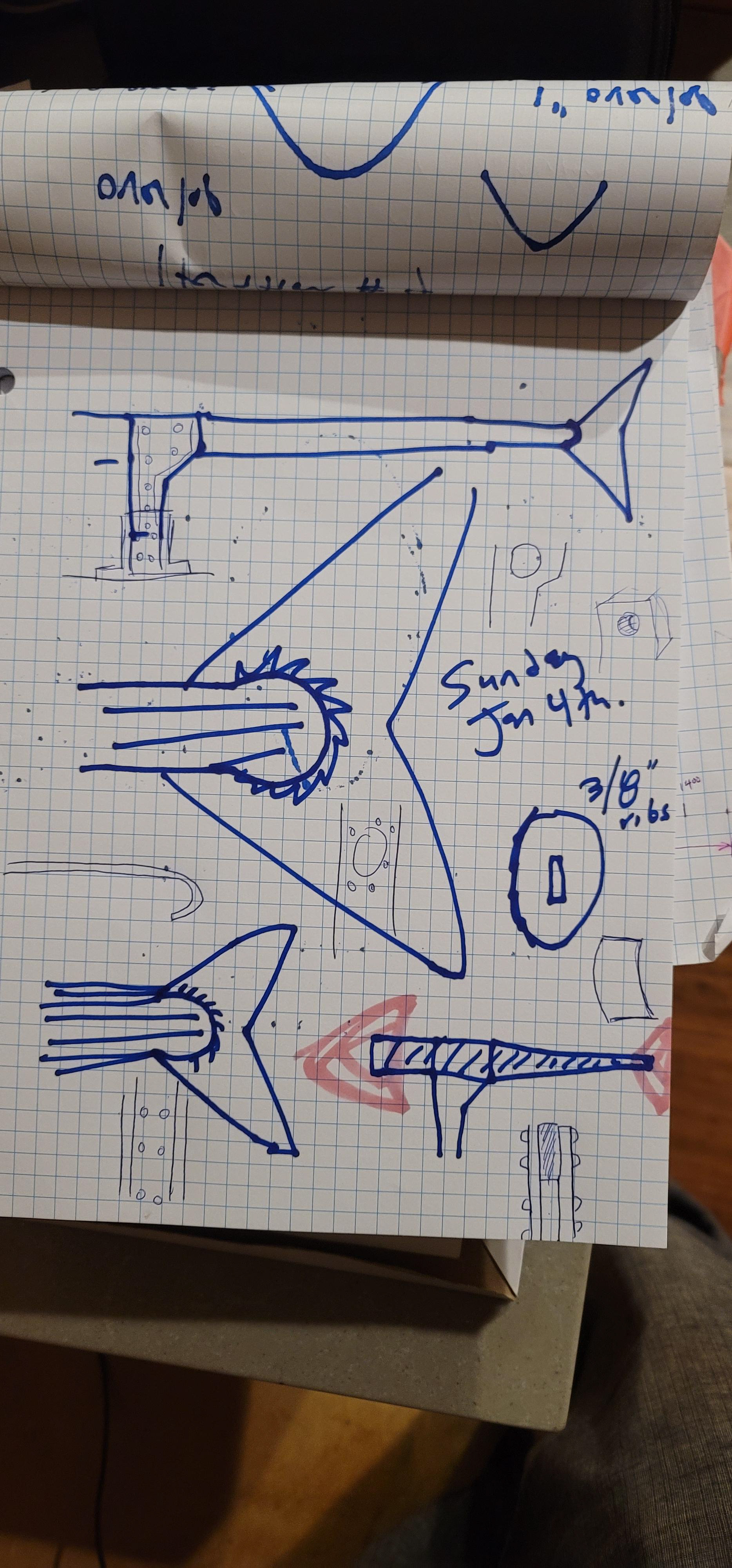

Iteration 4 sketches from Zeke
Iteration 4 sketches from Zeke

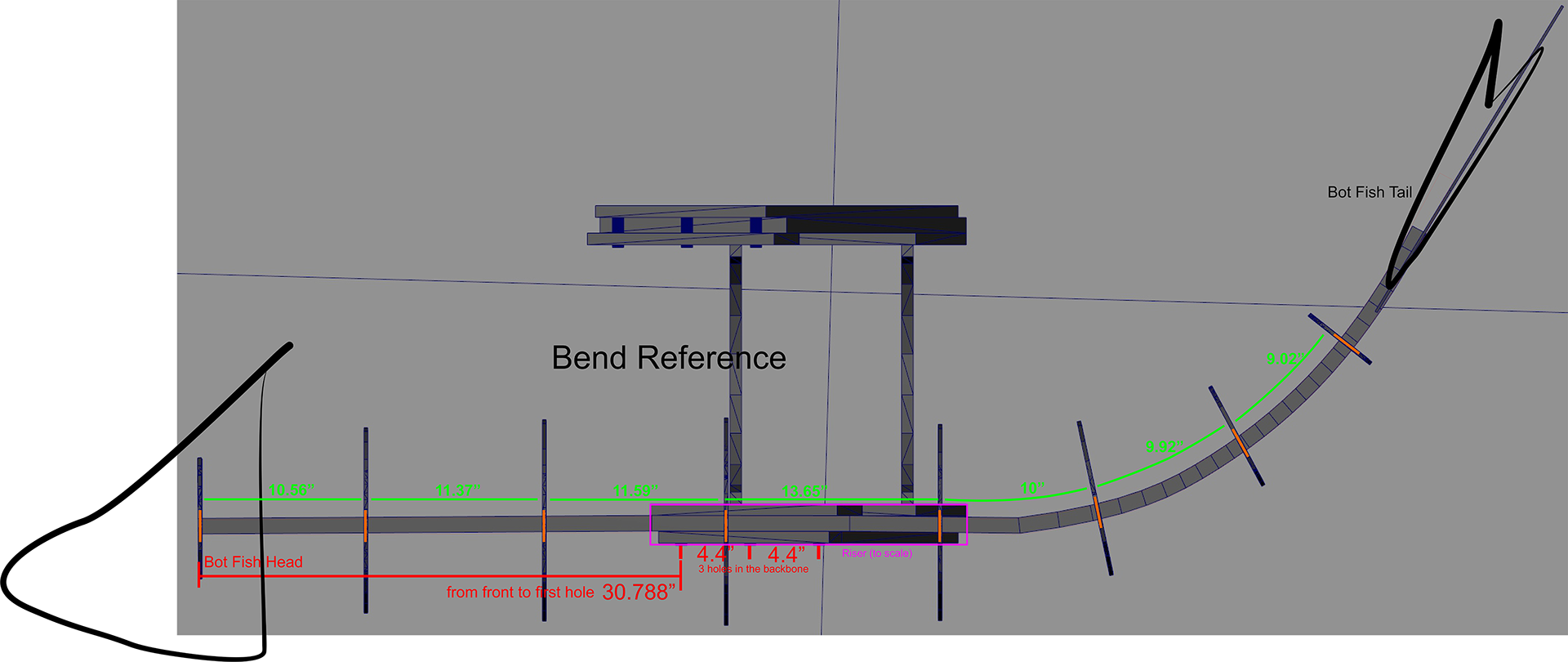

Bend References with Distances

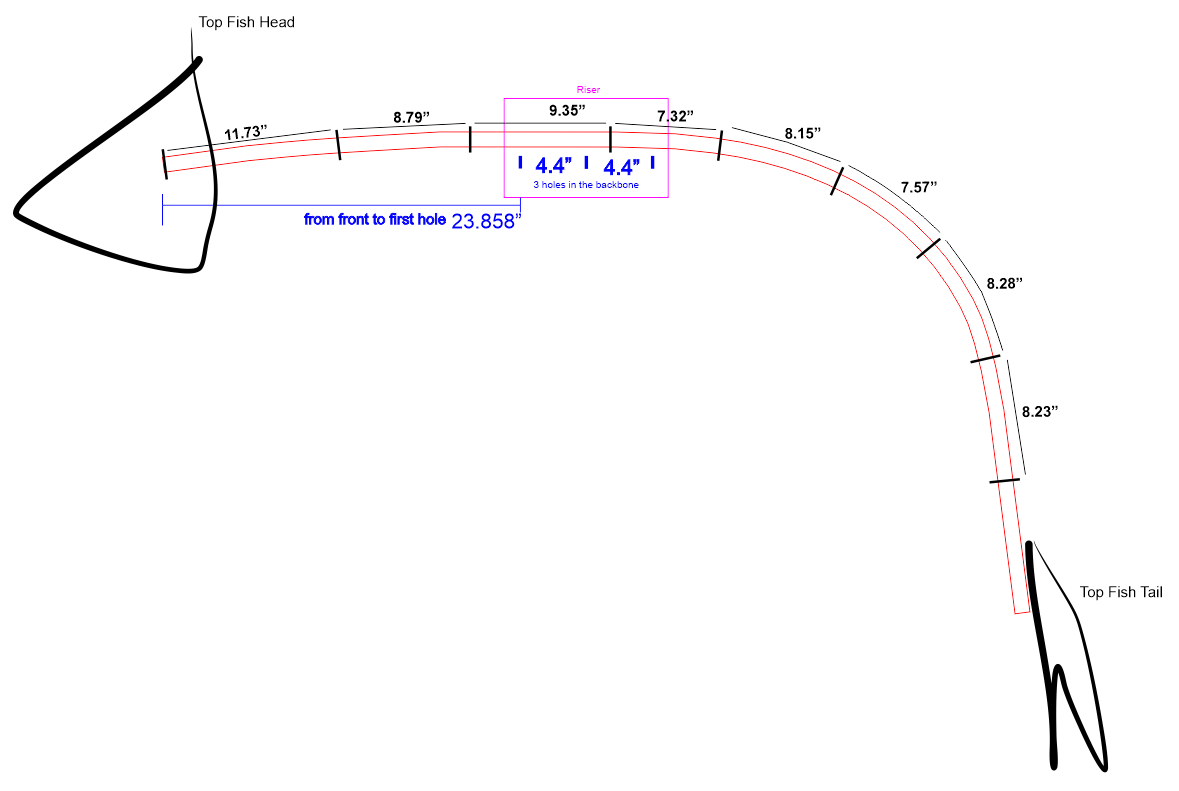

Top Fist Spacing

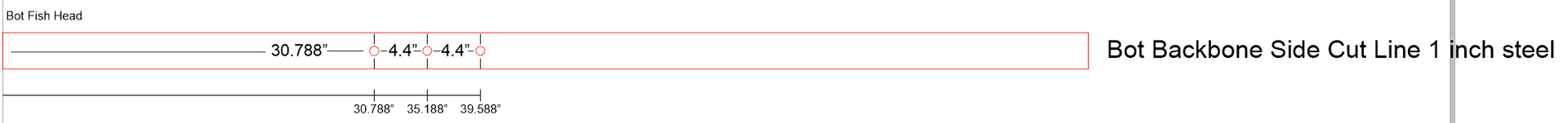

Bottom Fish Backbone Side View Cut Line

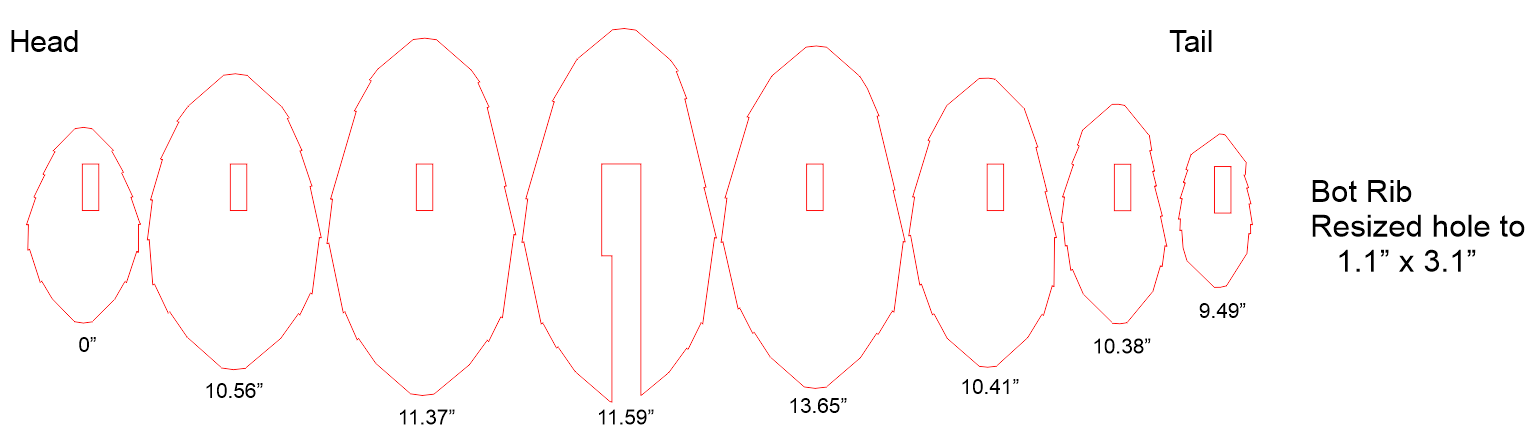

Rib Cuts for Skeleton

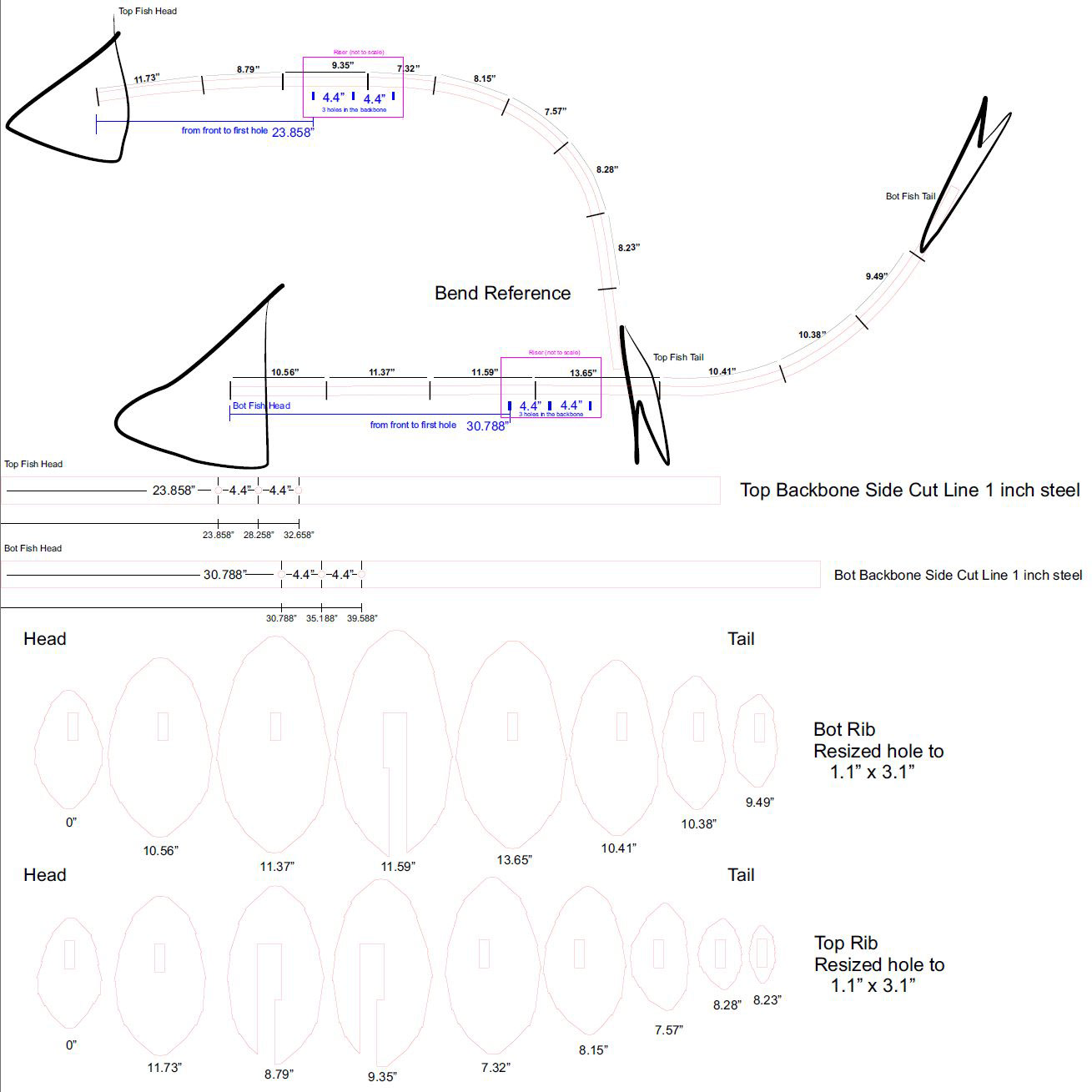

Layout of some elements not skin elements

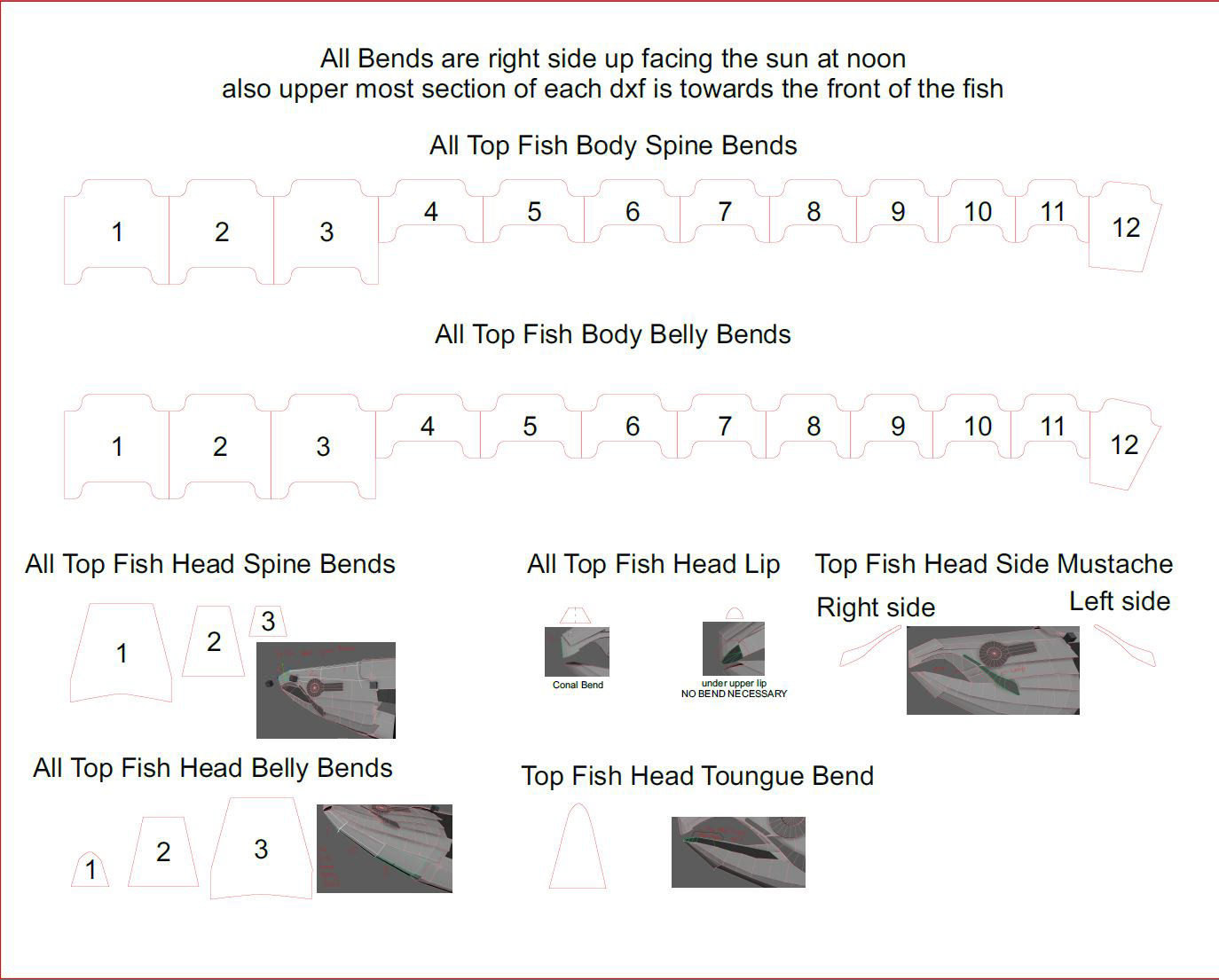

Skin Layouts for spine and Belly
All put together
Picture at Zeke's Metal Shop

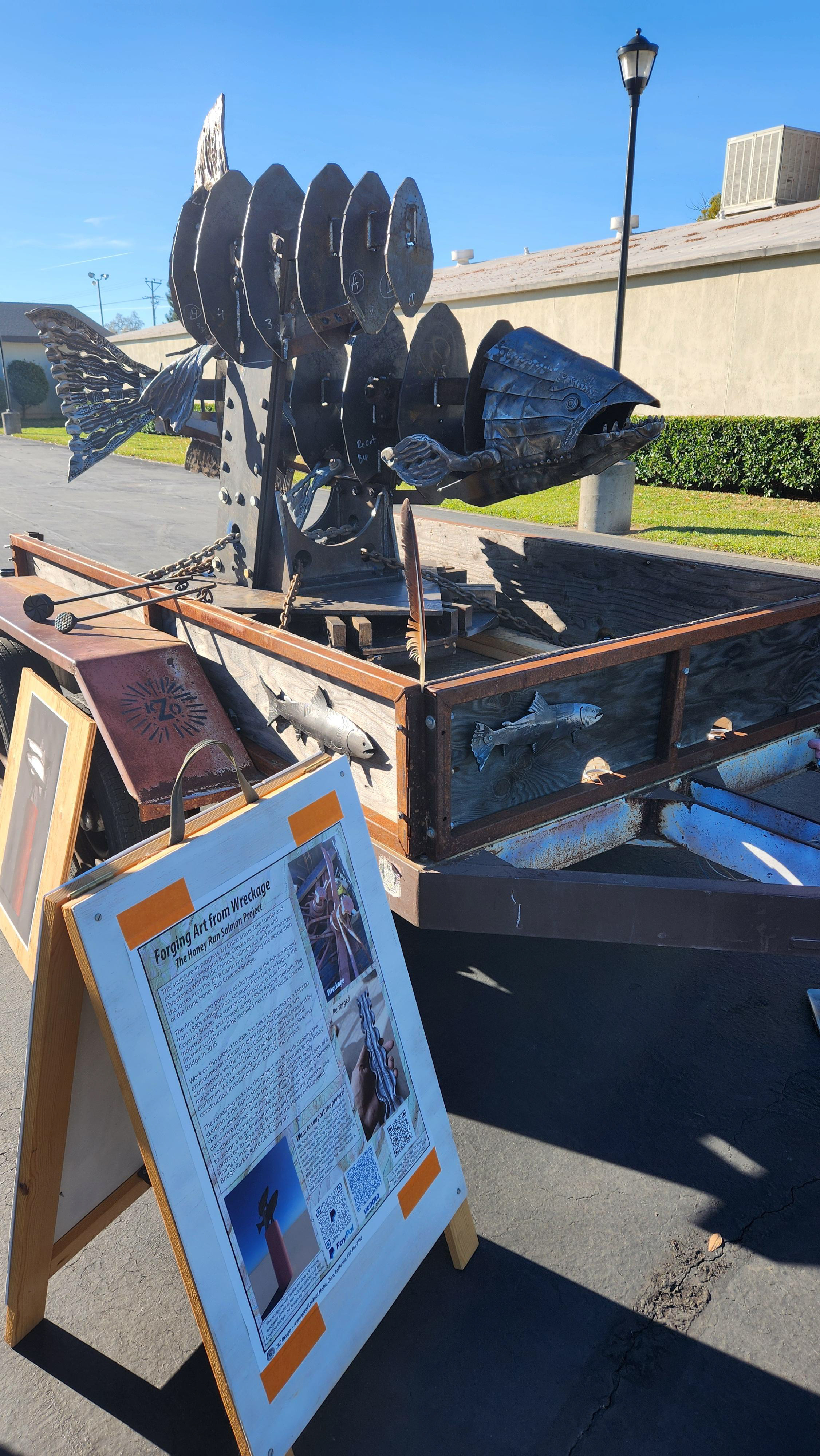

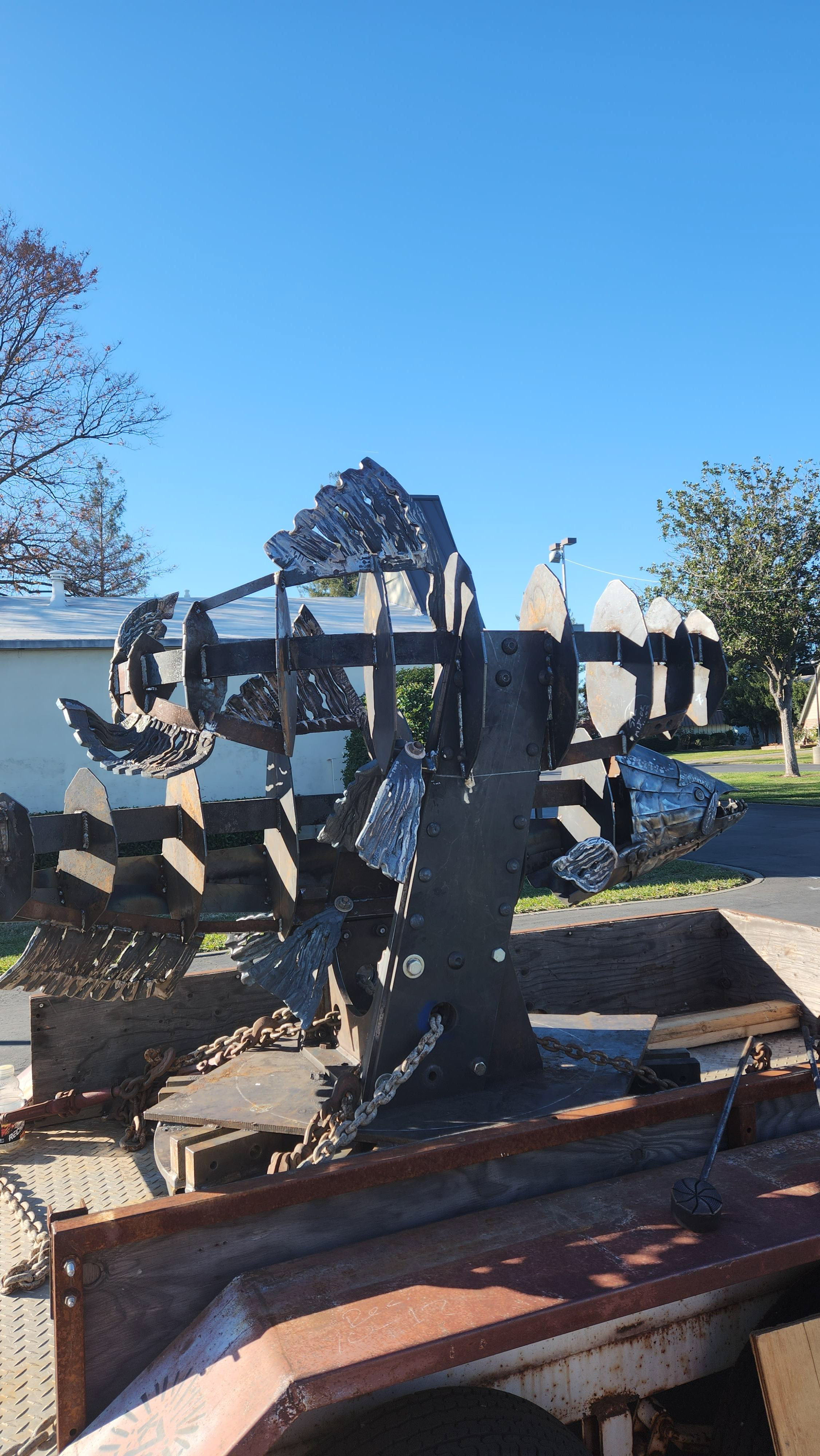

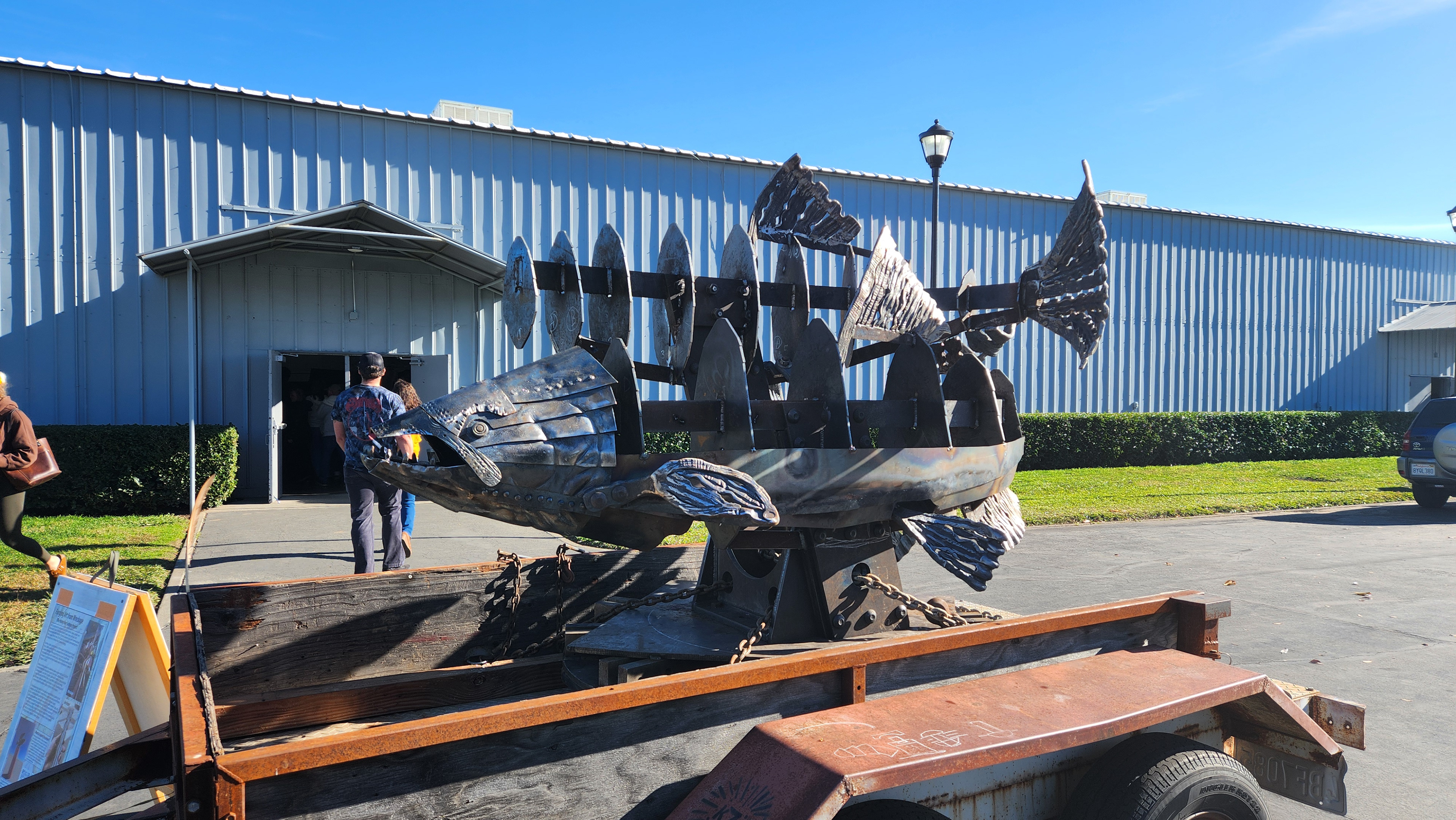

Picture taken of Sculpture at the Fair Grounds in Chico on a Trailer on Display for first public preview
Picture taken of Sculpture at the Fair Grounds in Chico on a Trailer on Display for first public preview, with me in the picture
Picture taken of Sculpture at the Fair Grounds in Chico on a Trailer on Display for first public preview (Side View)

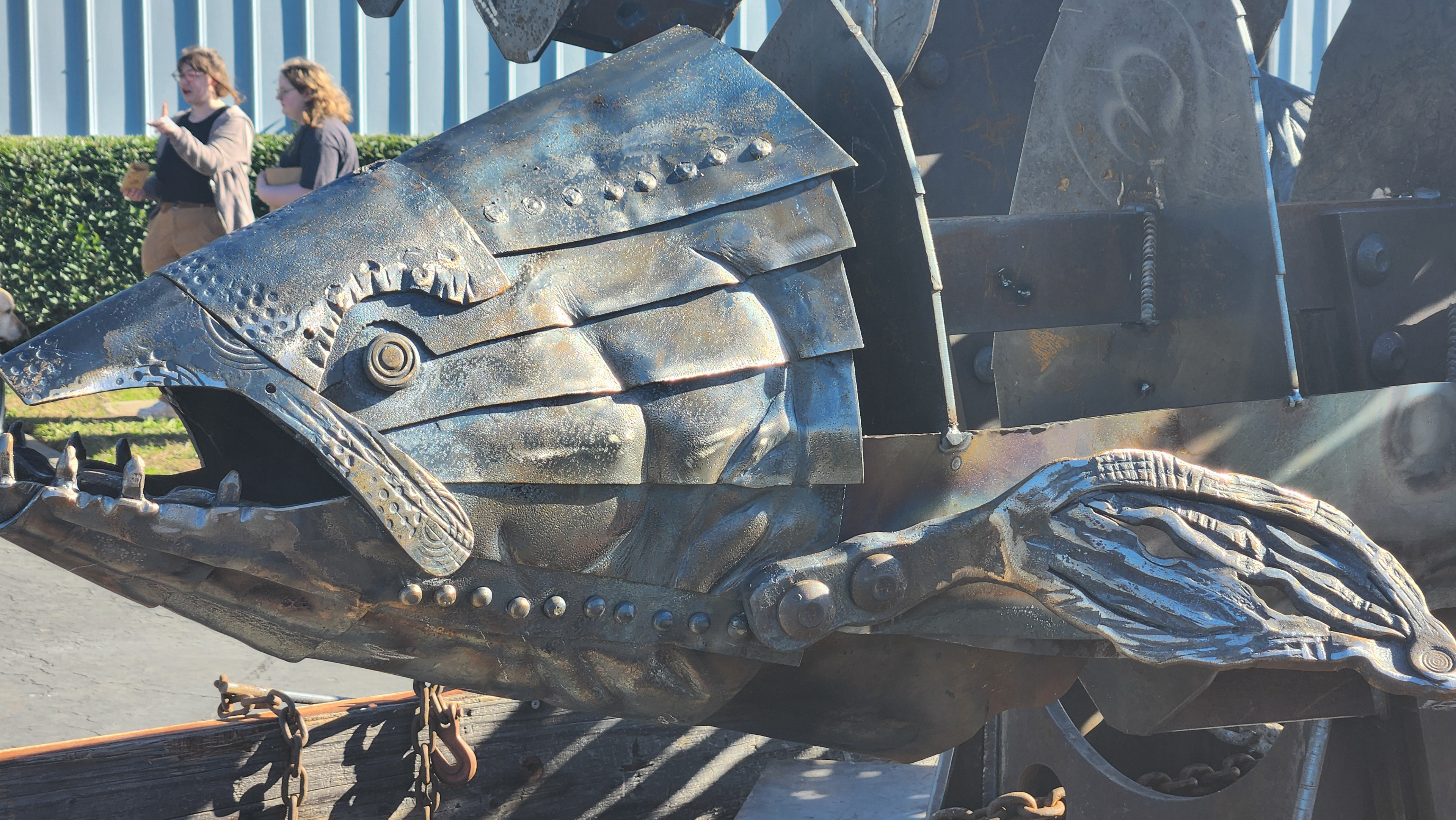

Picture taken of Sculpture at the Fair Grounds in Chico on a Trailer on Display for first public preview (Close Up of sculptural detail of the Bottom Head)

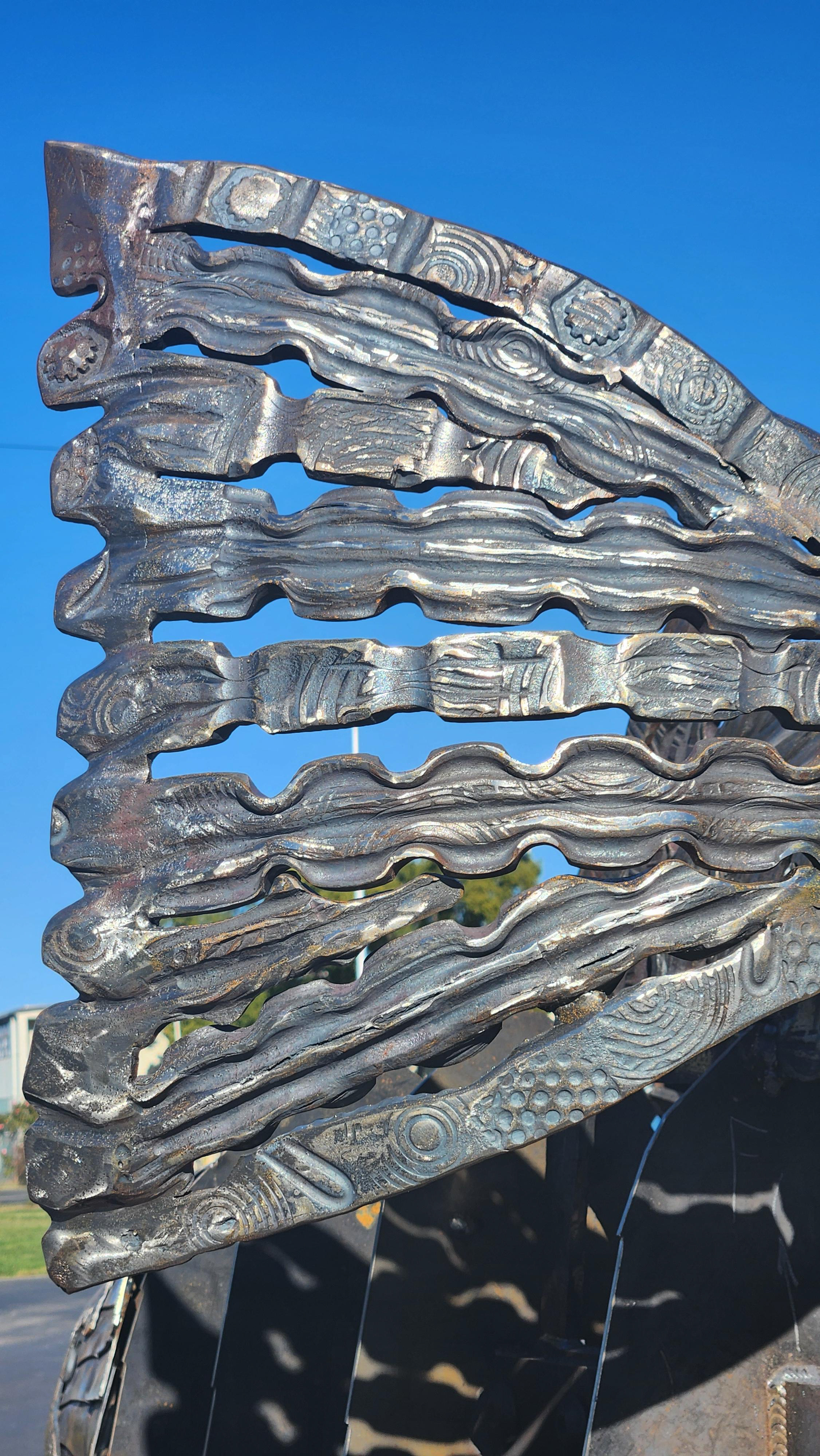

Picture taken of Sculpture at the Fair Grounds in Chico on a Trailer on Display for first public preview (Detail of the Sculptural detail of the Original Iron Rods from the Honey Run Bridge for the tail Fin)
Picture taken of Sculpture at the Fair Grounds in Chico on a Trailer on Display for first public preview (Other side view)
